Industrial Grade D28 Steel 3D Welding Worktable with Legs

Model Number : D28

Hole Specification : D28, Φ28 mm H7 precision hole

Price : 500-1500 USD

Surface Finish : Plasma Nitriding

Certification : CE

Hole Grid : 100 mm × 100 mm spacing

MOQ : 1 PCS

Delivery Time : 15-25 work days

Rear Structure : Box‑type heavy‑duty reinforcing ribs

Flatness : ≤0.1 mm / 1000 mm

Payment Terms : D/A,D/P,T/T,L/C

Surface Hardness : HV550‑900

Supply Ability : 500 units/month

Nitriding Layer Depth : 0.25‑0.35 mm

Brand Name : WUXI LEMAR

Table Material : Q355 / S355JR High‑Strength Steel

Packaging Details : 4000*2000*200mm

Place of Origin : WUXI , CHINA

Machining : 5‑sides full CNC machining (top + four side faces)

Contact Now

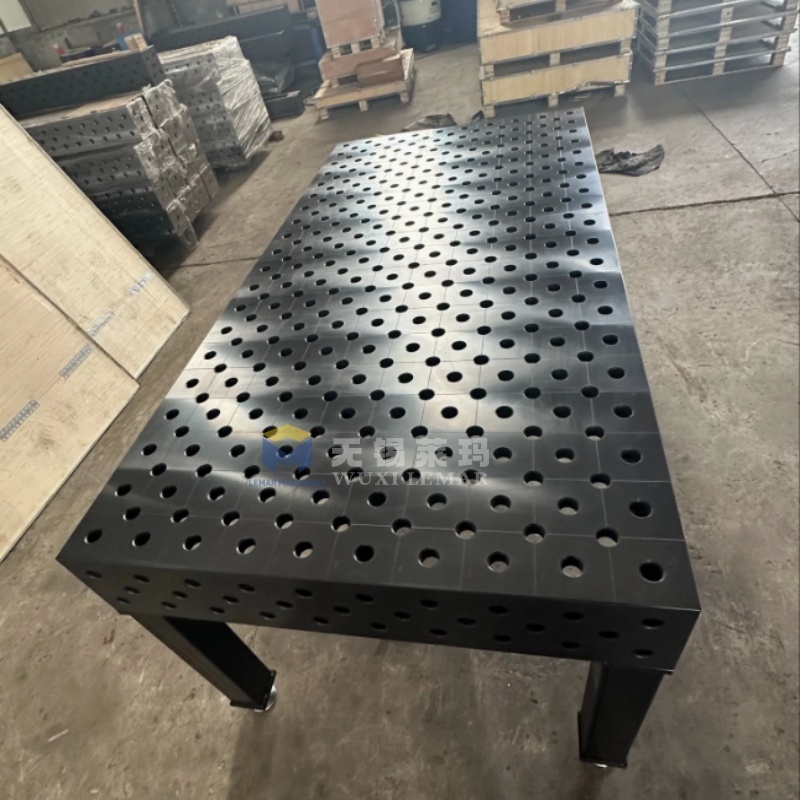

Industrial Grade D28 Steel 3D Welding Worktable with Legs
Industrial Grade D28 Steel 3D Welding Worktable with Legs Boost your welding efficiency with our Industrial Grade D28 Steel 3D Welding Worktable With Legs, a robust modular 3D fixture solution for heavy‑duty metal fabrication. Crafted from Q355 high‑strength steel, five‑sided CNC‑machined with D28 Φ28mm H7 hole system on a 100 × 100 mm grid. Stress‑relieved to eliminate internal deformation risk and plasma‑nitrided for anti‑spatter, hard‑wearing working surfaces. Pre‑assembled heavy steel legs with cross bracing and leveling feet enable fast on‑site setup right after delivery. Perfect for manual welding and robotic welding stations. Interchangeable with mainstream D28 clamping parts, supports multi‑unit extension. Multiple dimensions in stock, custom sizes and export‑ready documents are available for global industrial fabricators.
Industrial Grade D28 Steel 3D Welding Worktable with Legs Industrial Grade D28 Steel 3D Welding Worktable with Legs
Standard Specifications
Table Dimension L×W (mm) Table Thickness (mm) Quantity of Support Legs Static Load Capacity Approx. Table Weight
1000 × 800 22 4 5 Ton 300 kg
1000 × 1000 22 4 5 Ton 360 kg
1500 × 1000 22 4 6 Ton 520 kg
2000 × 1000 25 4 7 Ton 700 kg
2000 × 1500 25 6 8 Ton 960 kg
3000 × 1500 25 6 9 Ton 1380 kg
3000 × 2000 28 6 10 Ton 1850 kg
4000 × 2000 28 8 10 Ton 2650 kg
Notes:
  • Each set includes support legs, cross‑bracing beams and leveling feet. Clamping accessories are sold separately.
  • Larger sizes can be realized by multi‑table splicing.
  • All weights & load values are reference data; formal inspection report can be provided for export orders.
Surface Finish Details
  • Process: Ion plasma nitriding; temperature 480-540°C; duration 8-12 hours; nitriding treatment applied to the inner bore walls and all five working surfaces
  • Nitrided layer depth: 0.25-0.35 mm; surface hardness HV550-900 (HV870 available for custom mold steel versions)
  • Performance: Resistant to weld spatter adhesion and wear, with mild rust resistance; weld spatter is easier to knock off after cooling and less likely to fuse or seize onto the table surface
  • Limitations: The nitrided layer is a thin surface coating; aggressive grinding or sanding of the working surfaces is prohibited, as this removes the nitrided layer, leading to rapid wear and rusting
  • Alternative surface finishes: Black oxide or spray coating; performance is significantly inferior to nitriding, typically used for budget-friendly models
Material Comparison: Compared to cast iron (HT300) welding tables, steel is more susceptible to pitting caused by high-temperature weld spatter; cast iron offers superior vibration damping and lower thermal expansion. However, steel tables excel in impact resistance and durability against hammering, are less prone to edge chipping, and are lighter, resulting in lower shipping costs.
Product Features
Industrial Grade D28 Steel 3D Welding Worktable with Legs Industrial Grade D28 Steel 3D Welding Worktable with Legs
Modular 3D Flexible Tooling

Eliminates the need for custom, application-specific fixtures. By combining locating pins, clamps, positioning blocks, and angle blocks, workpiece setup is completed in minutes, supporting horizontal, vertical, and angled clamping; multiple tables can be joined to expand the working area.

Five-Sided Machining

Standard D28 holes on the top surface and all four sides enable 3D positioning; serves as an ideal reference platform for the welding, assembly, and inspection of complex frames, housings, and chassis.

Complete Unit with Legs

Ready for immediate use upon unboxing, placement, and leveling--no on-site base welding required; standard leg height is 800-850 mm, designed for ergonomic welding operations.

Splicing and Expansion Capabilities
D28 3D welding tables can be joined together to create an extra-large working area--for example, a 2×2 configuration resulting in a 4000×3000mm surface.
  • Joining is achieved via the D28 holes on the sides, using D28 locating pins and locking bolts to securely fasten the tables together
  • The flatness deviation at the joint seam is controlled to ≤0.15mm
  • Note: The foundation floor must be perfectly level; otherwise, height discrepancies (steps) will occur at the joints
  • For work surfaces exceeding 4000mm, joining multiple smaller tables is the preferred approach over using a single large plate, as the latter presents extreme difficulties regarding transportation and lifting
Interested in our Industrial Grade D28 Steel 3D Welding Worktable With Legs?
Whether you need standard models or custom‑built welding platforms for heavy fabrication or robotic welding lines, we can meet your specifications. Submit your inquiry now with your target size and application details, and we will send you a competitive quote and full technical data.
